You Are Here  Home Products Thermal Relay BR2-D

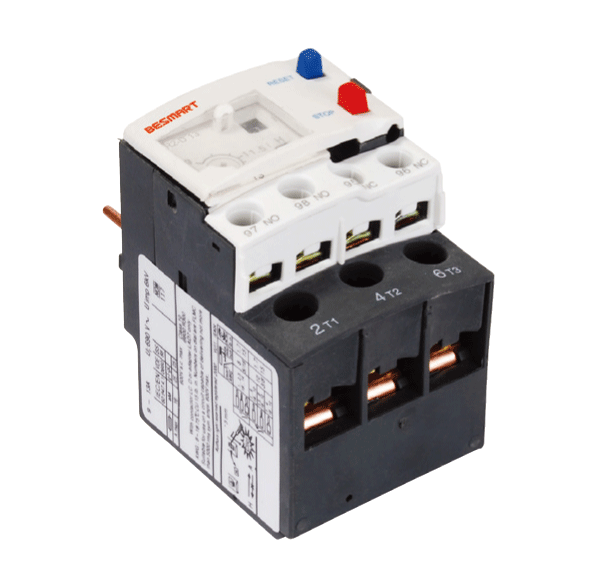

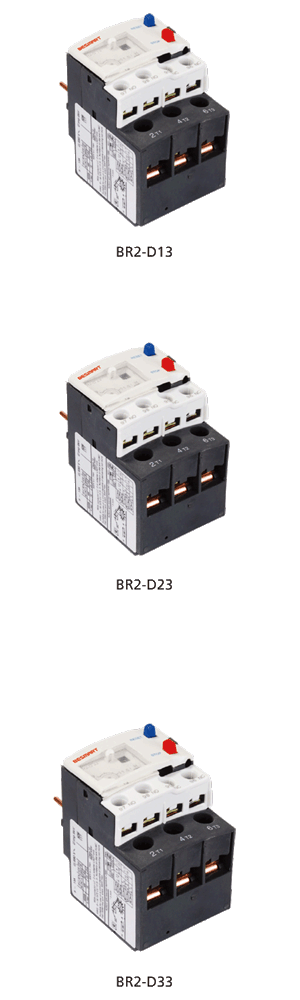

BR2-D

BR2-D

Introduction









Application

        BR2-D series new thermal relays are suitable in circuit of AC 50/60Hz voltage up to 660V and electric power under 45Kw for thermal overload protection. It has temperature compensation component. They can be fixed with BSC2 series contactor together, and be independently installed as well. The product comply with IEC60947-4-1.

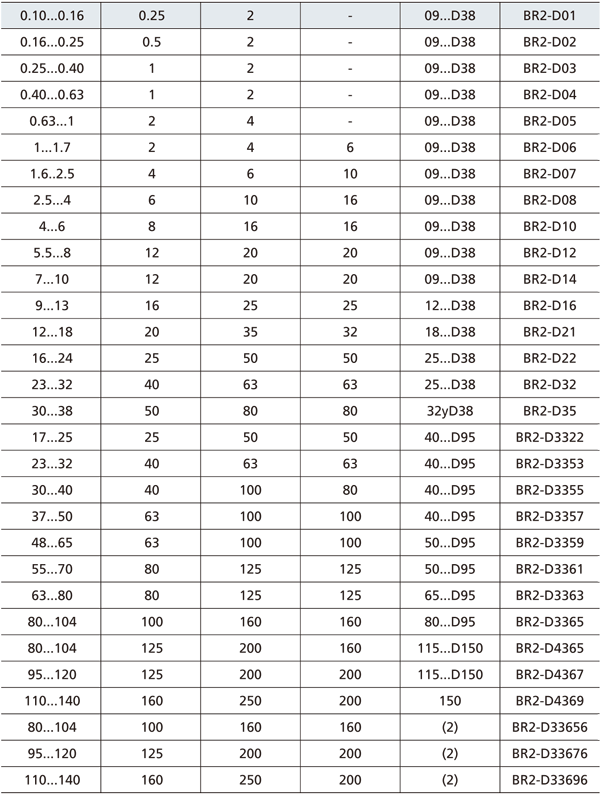

Technical Specification





Rated Setting Range (A)
