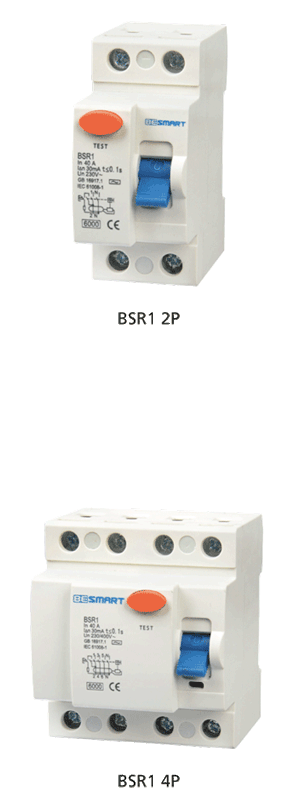

BSR1

BSR1

Introduction

































Specification and Feature

■ Provides protection against earth fault/leakage current and function of isolation
■ High breaking current withstand capacity
■ Applicable to terminal and pin/fork type busbar connection
■ Equipped with finger protected connection terminals
■ Fire resistant plastic parts endures abnormal heating and strong impact
■ Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
■ Independent of power supply and line voltage, and free from external interference, voltage fluctuation
■ Conform to standard IEC/EN61008-1

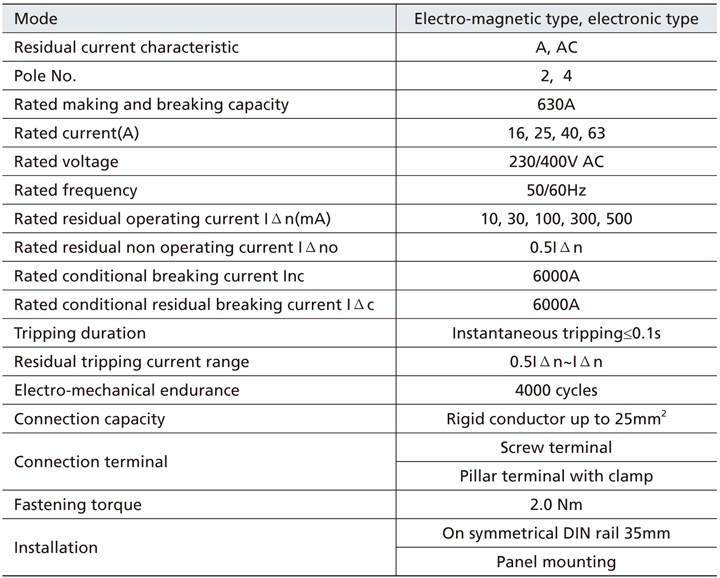

Technical Data

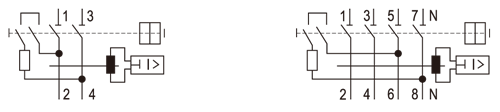

Wiring Diagram

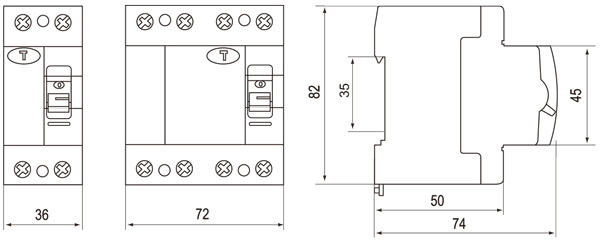

Overall & Installation Dimensions
